Illustrating AOS in Action

Please read Core Concepts if you haven't already.

Overall process

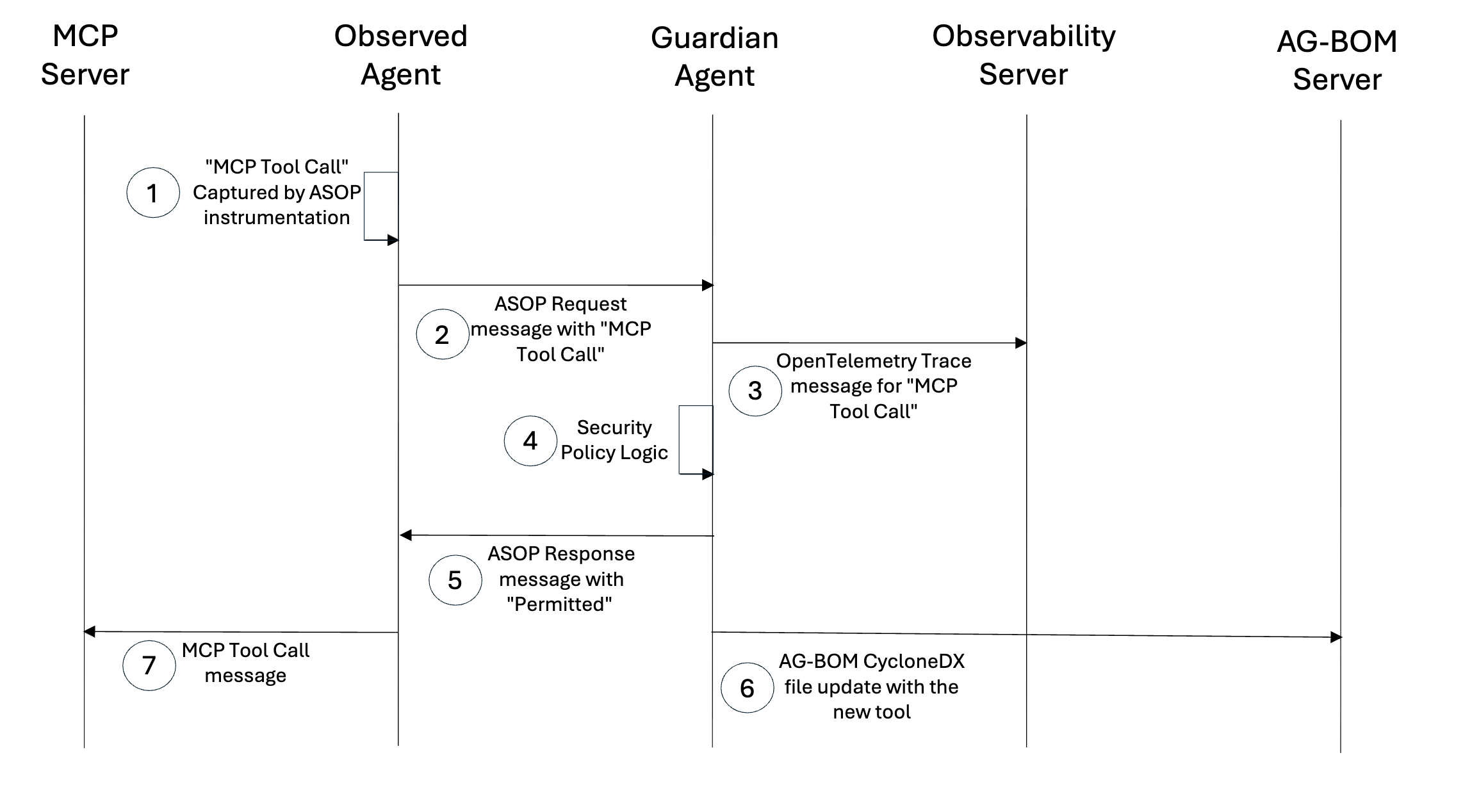

The following sequence diagram describes an example of MCP tool call request by an Observed Agent. Instrumented with AOS the Observed Agent communicates with a Guardian Agent.

The Guardian Agent has 3 roles:

1. It should permit, deny or modify the request and send back its verdict by AOS
2. Sending a trace of the request for observability purpose using OpenTelemetry or OCSF
3. Update it's bill-of-material with the new tool using CycloneDX, SWID or SPDX

The Step by Step process

Step 1: Agent MCP Tool Call

# add here the MCP tool call format

Step 2: Agent AOS Request sending

# add here the AOS Request with the MCP tool call

Step 3: Guardian Agent sending a trace of the MCP Tool Call

# add here the OpenTelemetry message example

Step 4: Guardian Agent Applying Policy Enforcement

# This is a code snippet example for security policy that allows only MCP servers from a given list

def is_known_mcp_server(ip):
    """
    Check if the provided IP address belongs to a known MCP CIDR block.
    """
    try:
        ip_obj = ipaddress.ip_address(ip)
        return any(ip_obj in ipaddress.ip_network(cidr) for cidr in KNOWN_MCP_SERVERS)
    except ValueError:
        return False

@app.before_request
def restrict_to_mcp_servers():
    """
    Middleware to restrict incoming requests to only those originating from known MCP servers.
    """
    client_ip = request.remote_addr
    if not is_known_mcp_server(client_ip):
        abort(403, description="Access denied: IP not in known MCP server list")

Step 5: Guardian Agent Sending a "Permitted" Response

# add here the AOS Response

Step 6: Guardian Agent Sending an updated BOM

The Guardian Agent update its BOM and send an updated file in CycloneDx format

{
  "bomFormat": "CycloneDX",
  "specVersion": "1.6",
  "version": 1,
  "metadata": {
    "timestamp": "2025-05-19T12:00:00Z",
    "tools": [
      { "name": "cyclonedx-python-lib", "version": "6.2.1" }
    ],
    "authors": [
      { "name": "AgentOps Team", "email": "[email protected]" }
    ]
  },
  "components": [
    {
      "type": "service",
      "name": "finance-summary-agent",
      "version": "1.2.3",
      "bom-ref": "urn:agent:finance-summary-agent",
      "properties": [
        { "name": "a2aCardUrl", "value": "https://agent.example.com/.well-known/agent.json" },
        { "name": "languageRuntime", "value": "Python 3.10.9" },
        { "name": "environment.os", "value": "Ubuntu 22.04" },
        { "name": "environment.architecture", "value": "x86_64" },
        { "name": "model", "value": "gpt-4-32k" },
        { "name": "modelContextWindow", "value": "32768" },
        { "name": "memoryBackend", "value": "Pinecone" },
        { "name": "memoryLimitMB", "value": "2048" },
        { "name": "compliance", "value": "SOC2, GDPR" }
      ]
    },
    {
      "type": "tool",
      "name": "WebSearchAPI",
      "version": "v1",
      "bom-ref": "urn:tool:websearchapi",
      "properties": [
        { "name": "description", "value": "External web search via Bing API" },
        { "name": "endpoint", "value": "https://api.bing.microsoft.com/v7.0/search" },
        { "name": "auth", "value": "API key" },
        { "name": "scope", "value": "read-only" },
        { "name": "timeoutMs", "value": "3000" }
      ]
    },
    {
      "type": "tool",
      "name": "PythonREPL",
      "bom-ref": "urn:tool:pythonrepl",
      "properties": [
        { "name": "description", "value": "Sandboxed Python evaluator" },
        { "name": "sandbox", "value": "true" },
        { "name": "memoryLimitMB", "value": "128" }
      ]
    }
  ],
  "dependencies": [
    {
      "ref": "urn:agent:finance-summary-agent",
      "dependsOn": [
        "urn:tool:websearchapi",
        "urn:tool:pythonrepl"
      ]
    }
  ],
  "signatures": [
    {
      "value": "<base64-encoded-signature>",
      "keyId": "agent-signing-key"
    }
  ]
}

Step 7: Agent Sending the Tool Call Request to the MCP server

## add here the MCP standard tool call
